Description

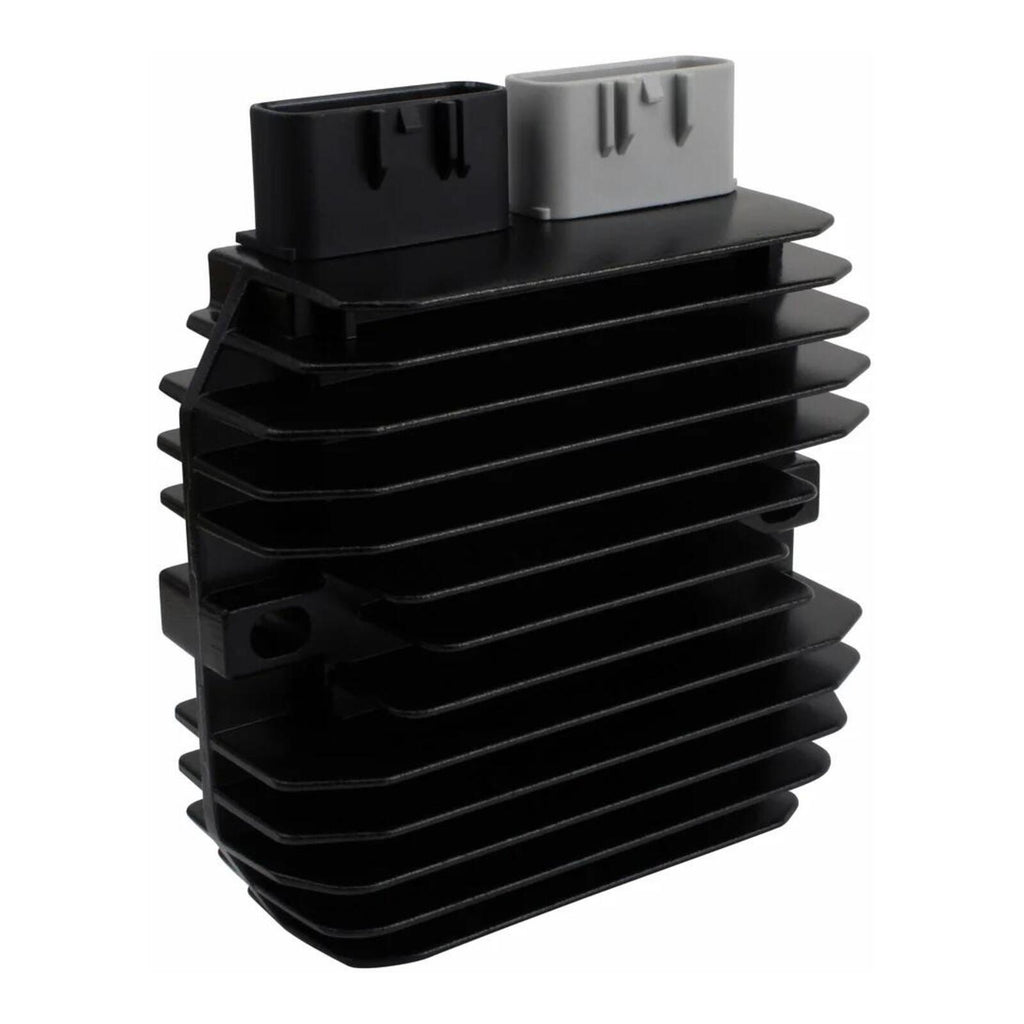

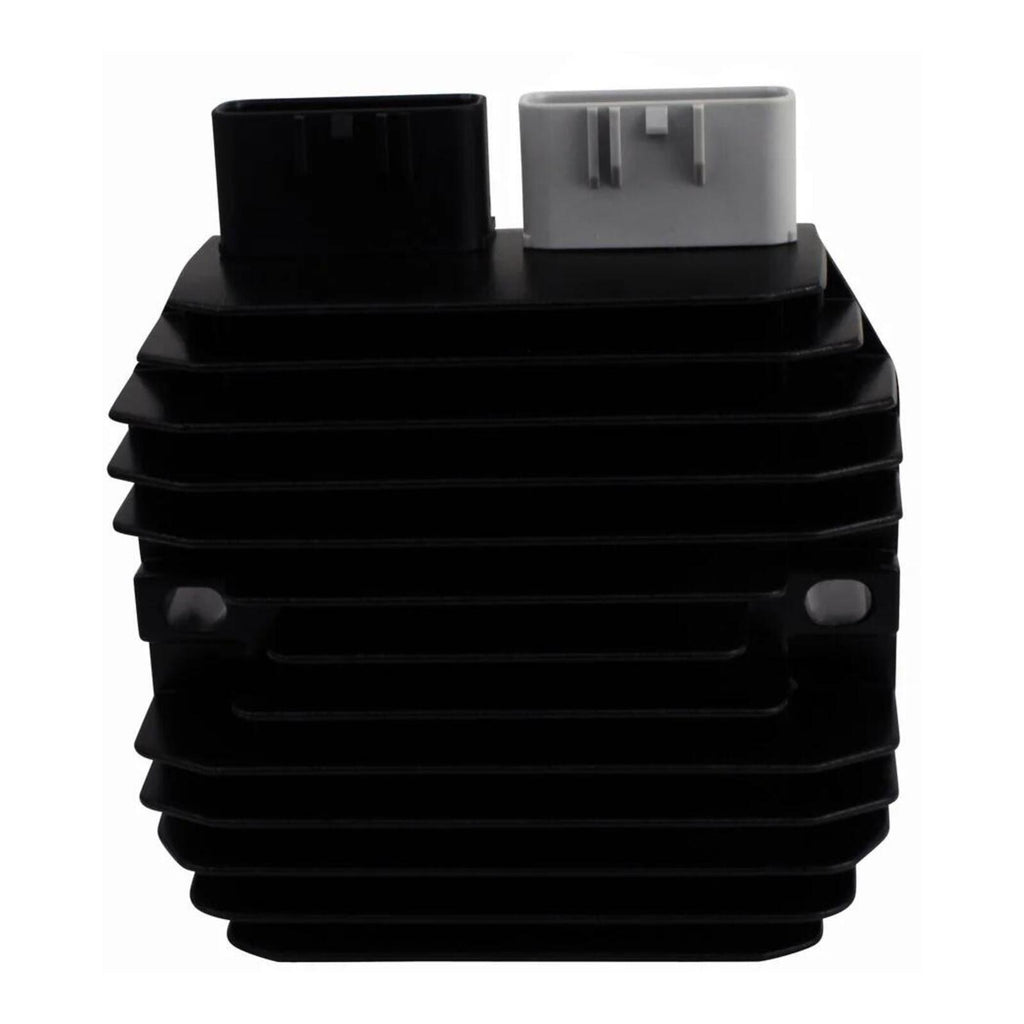

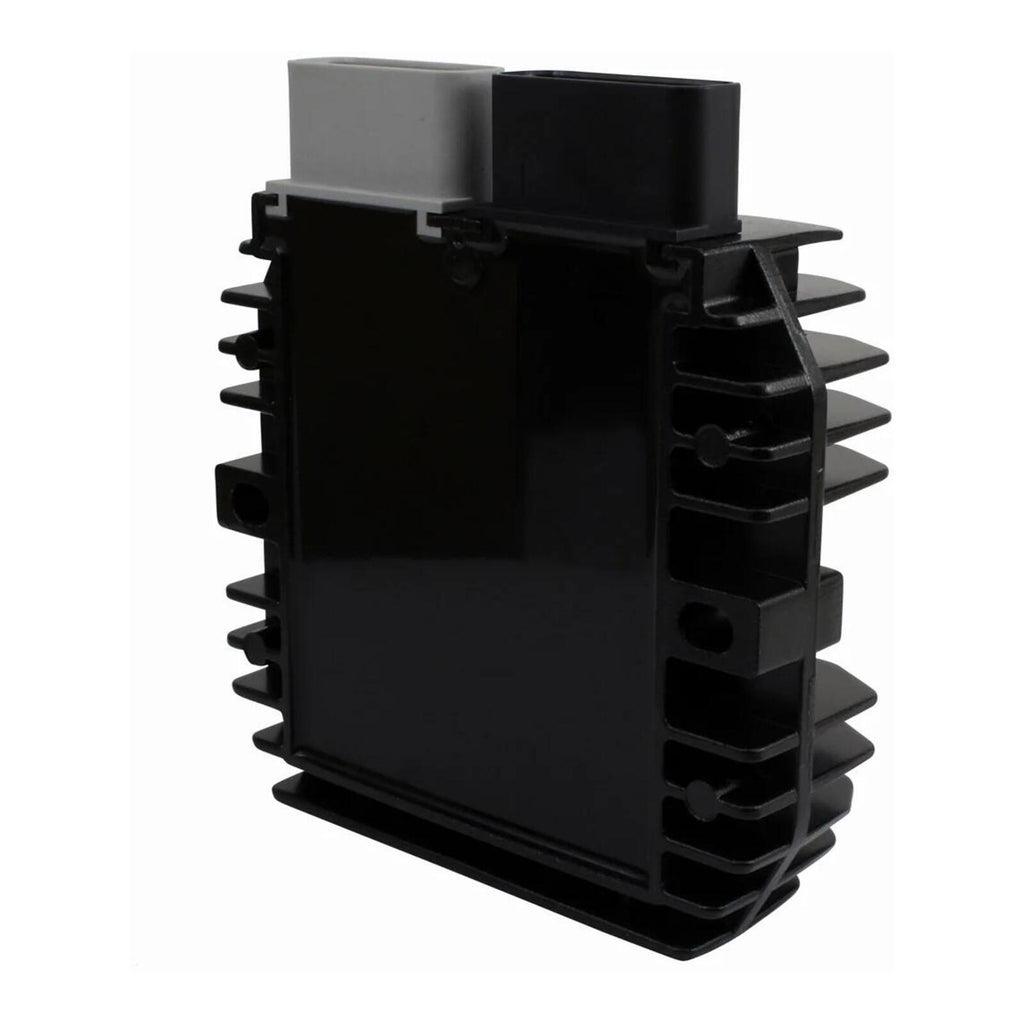

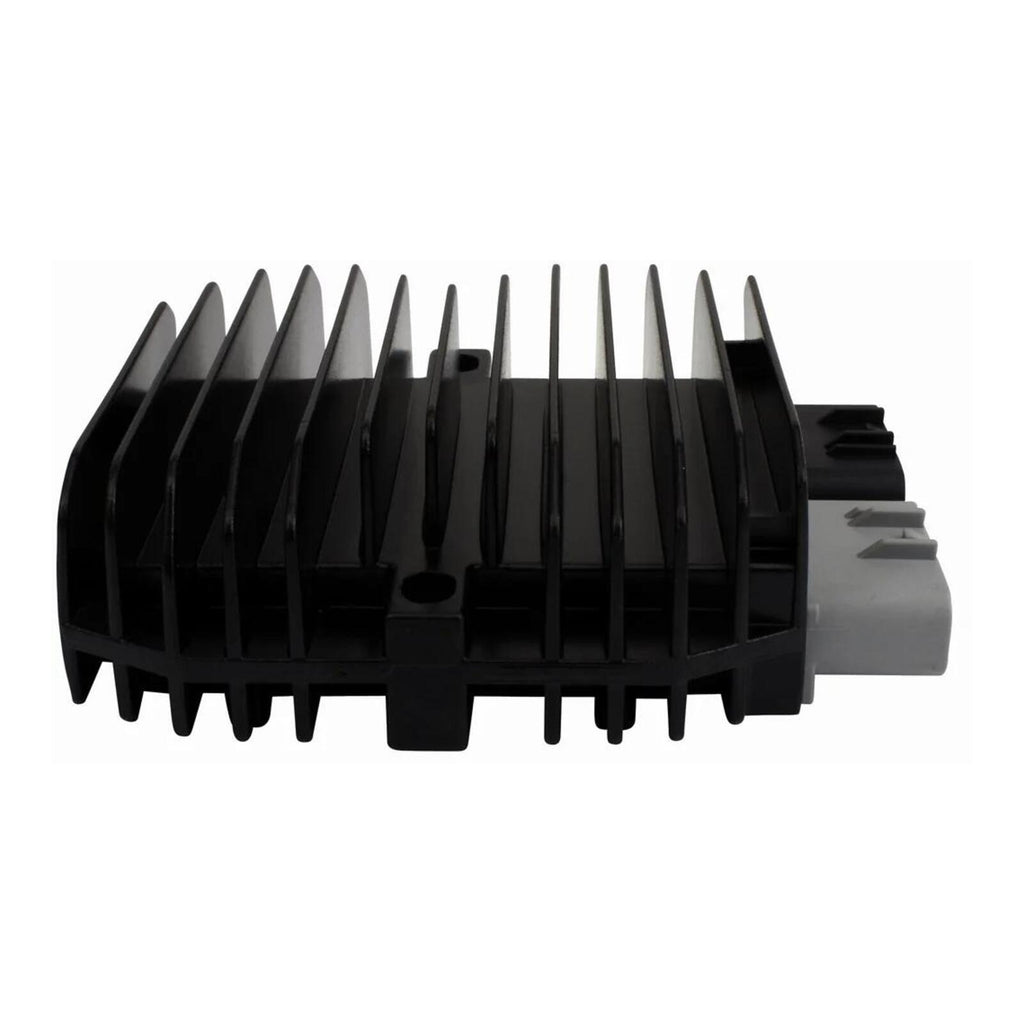

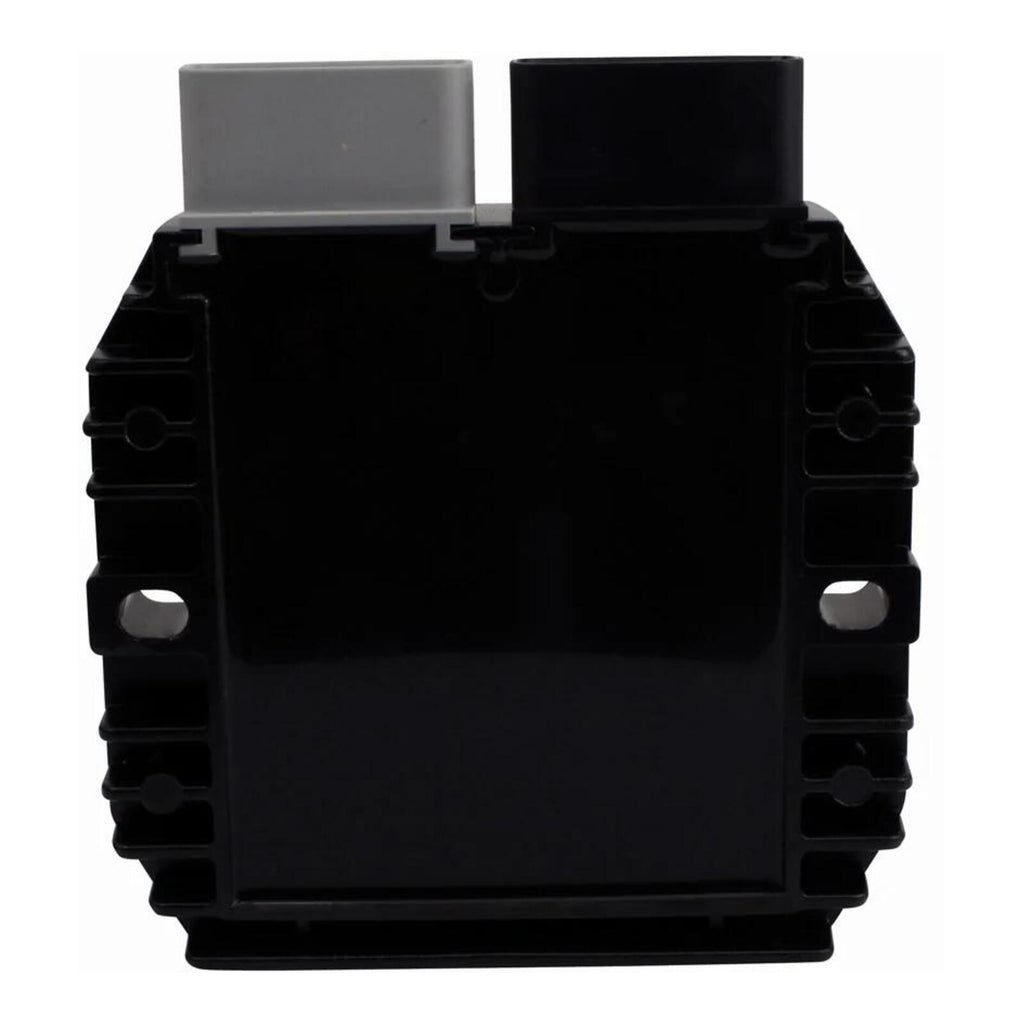

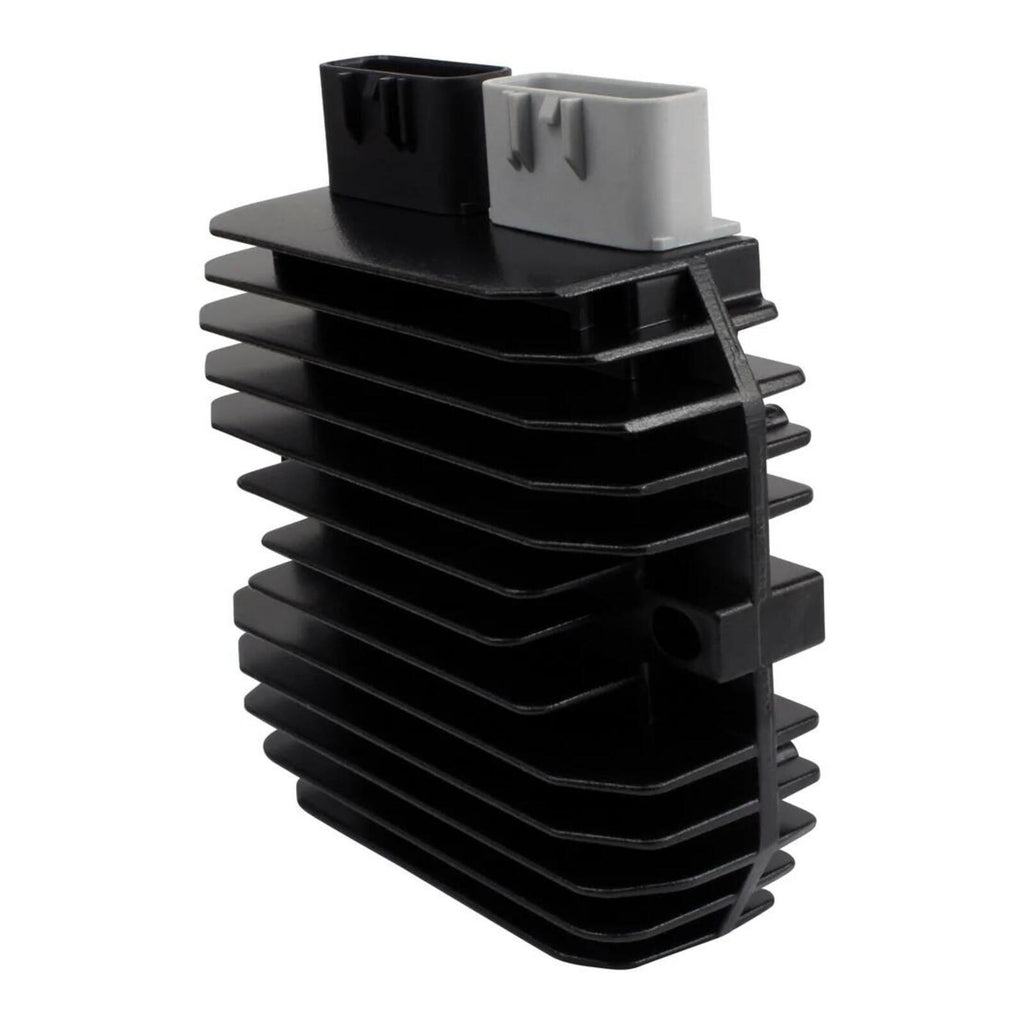

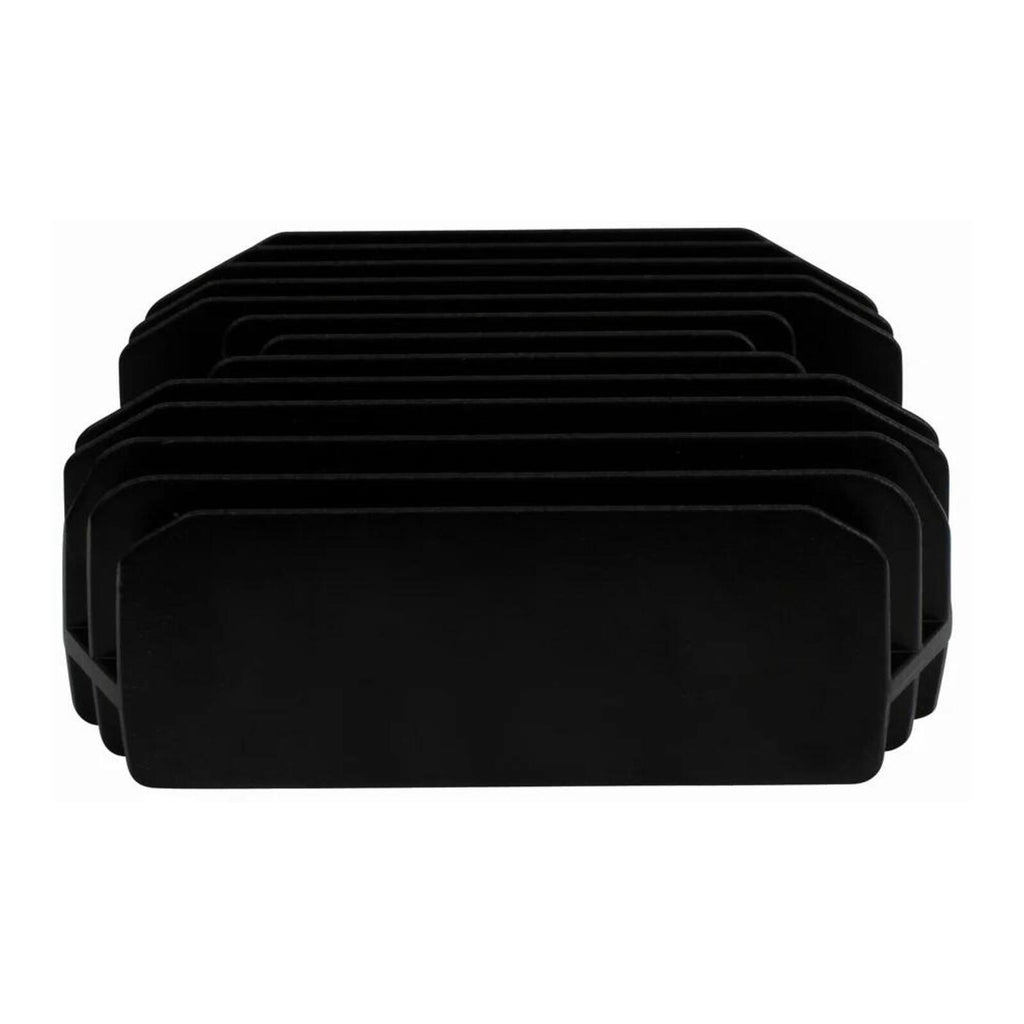

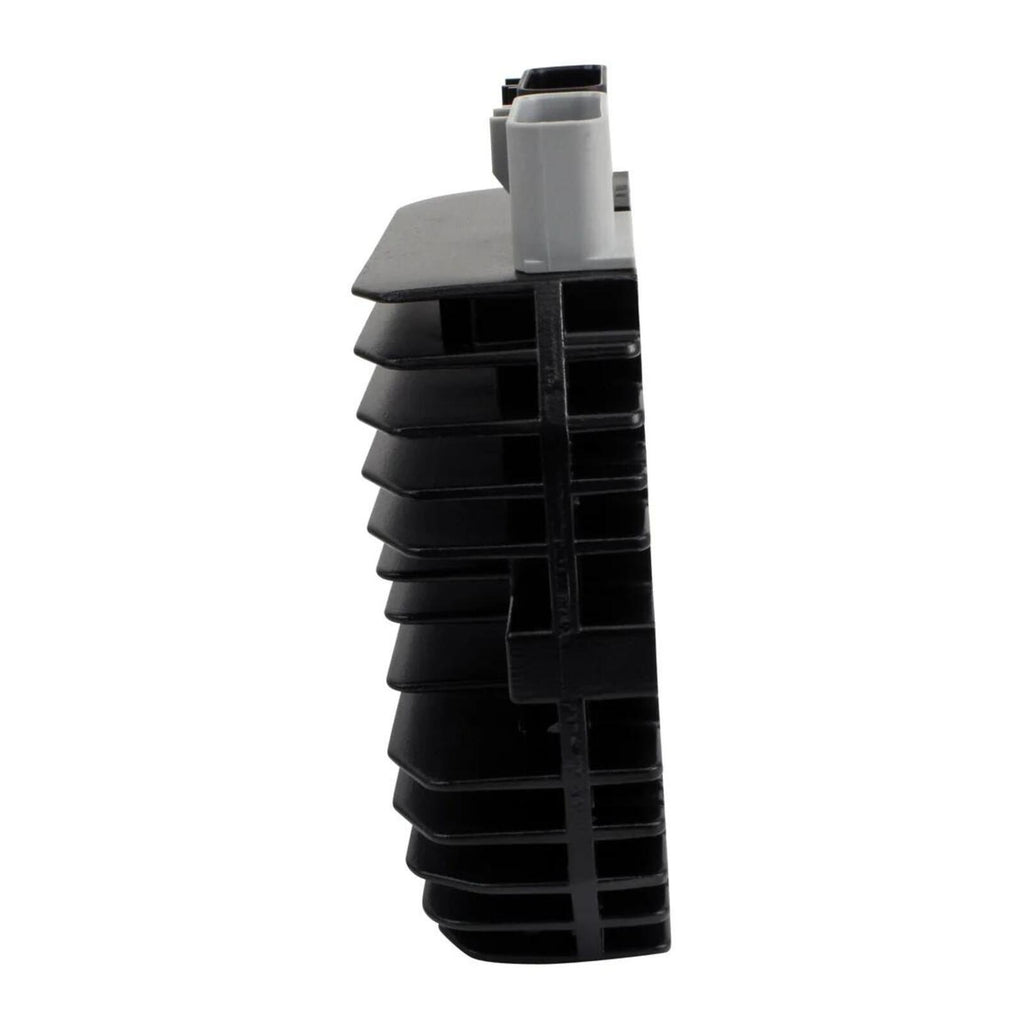

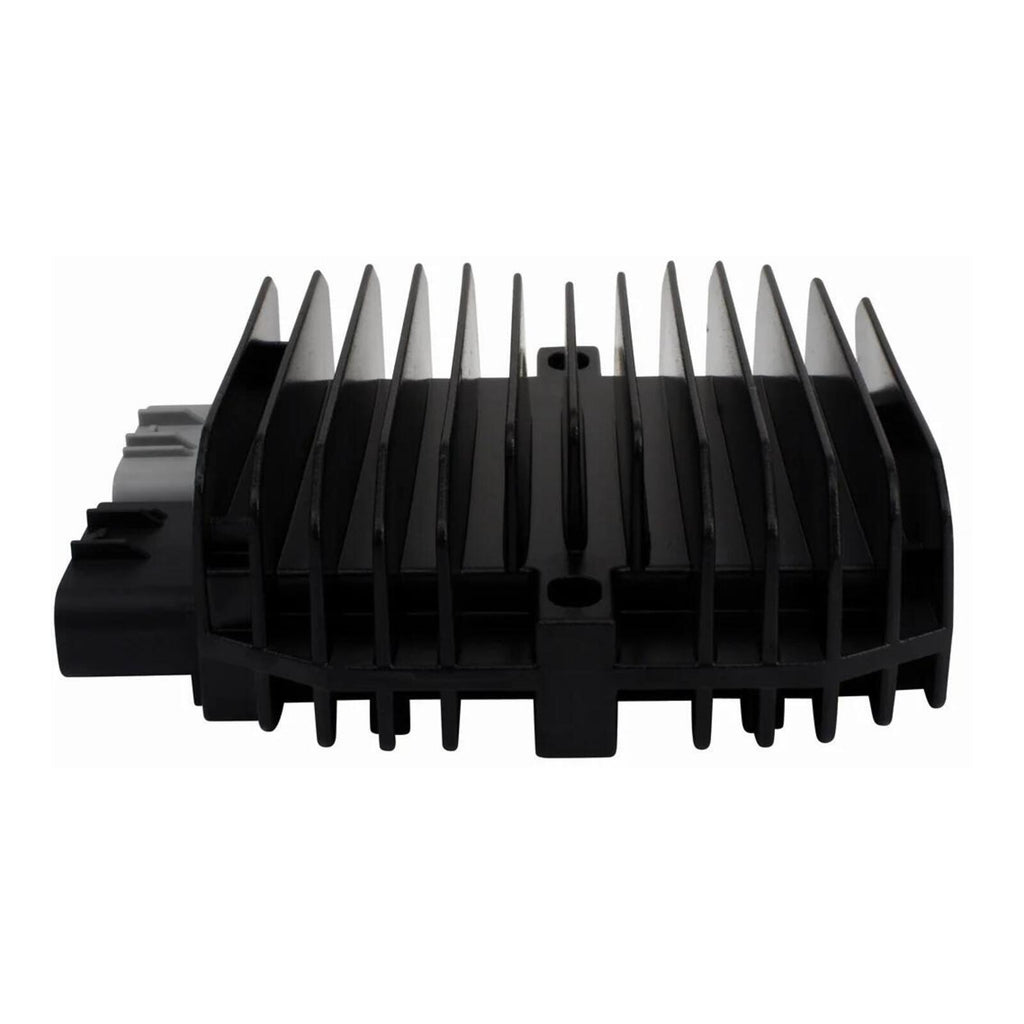

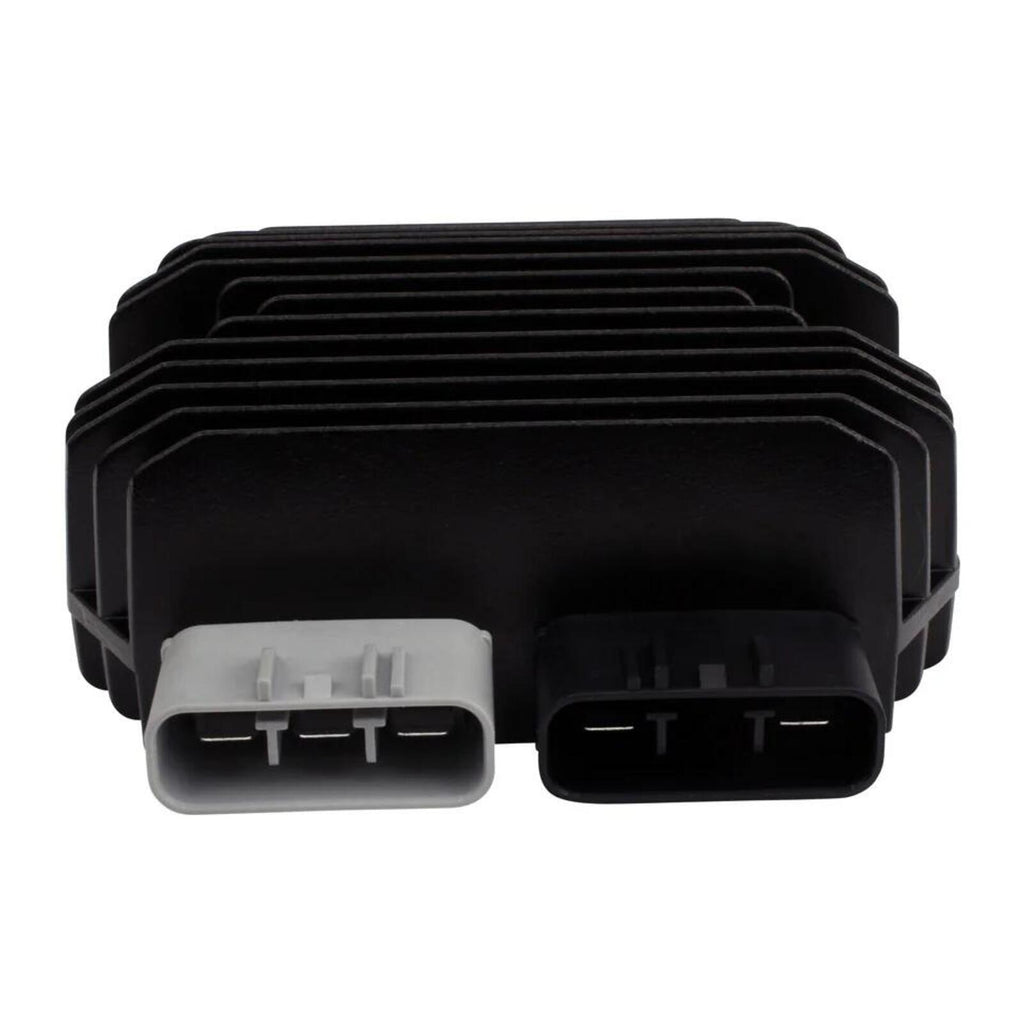

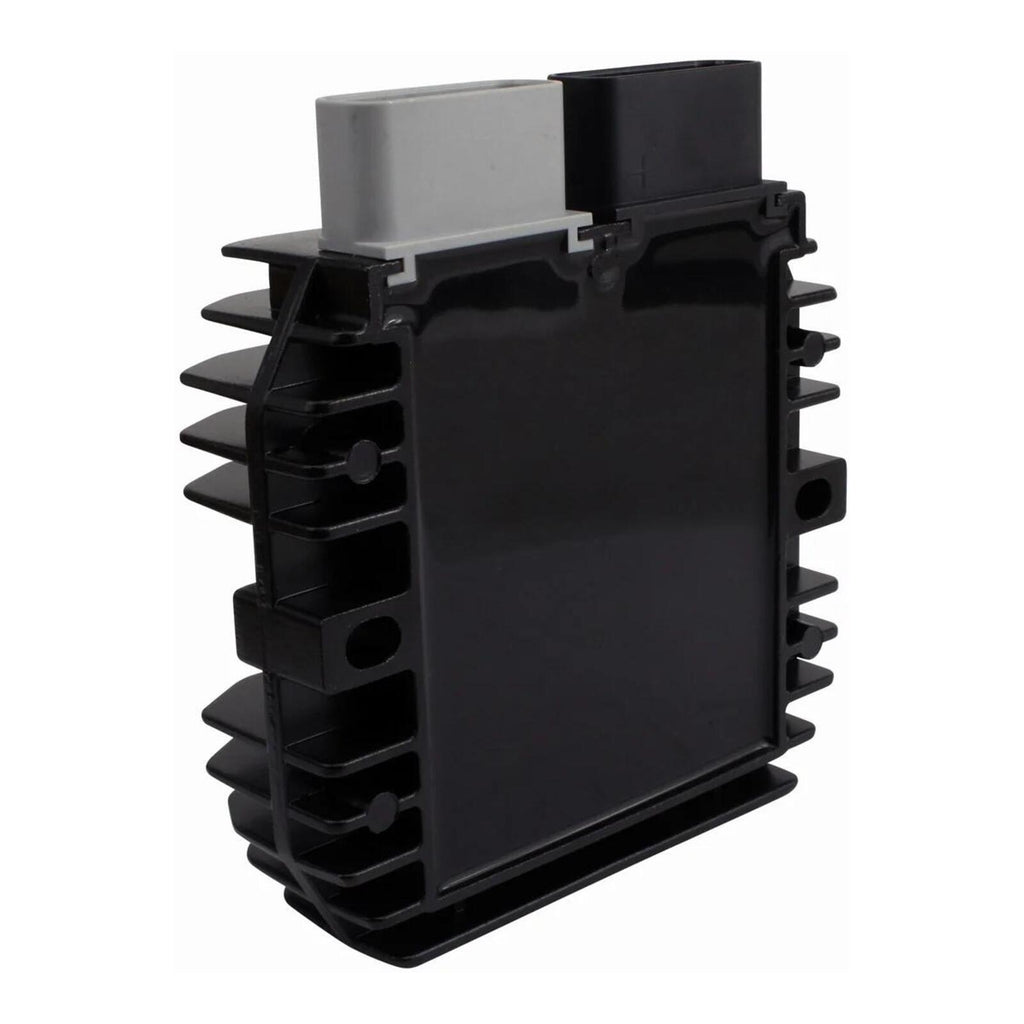

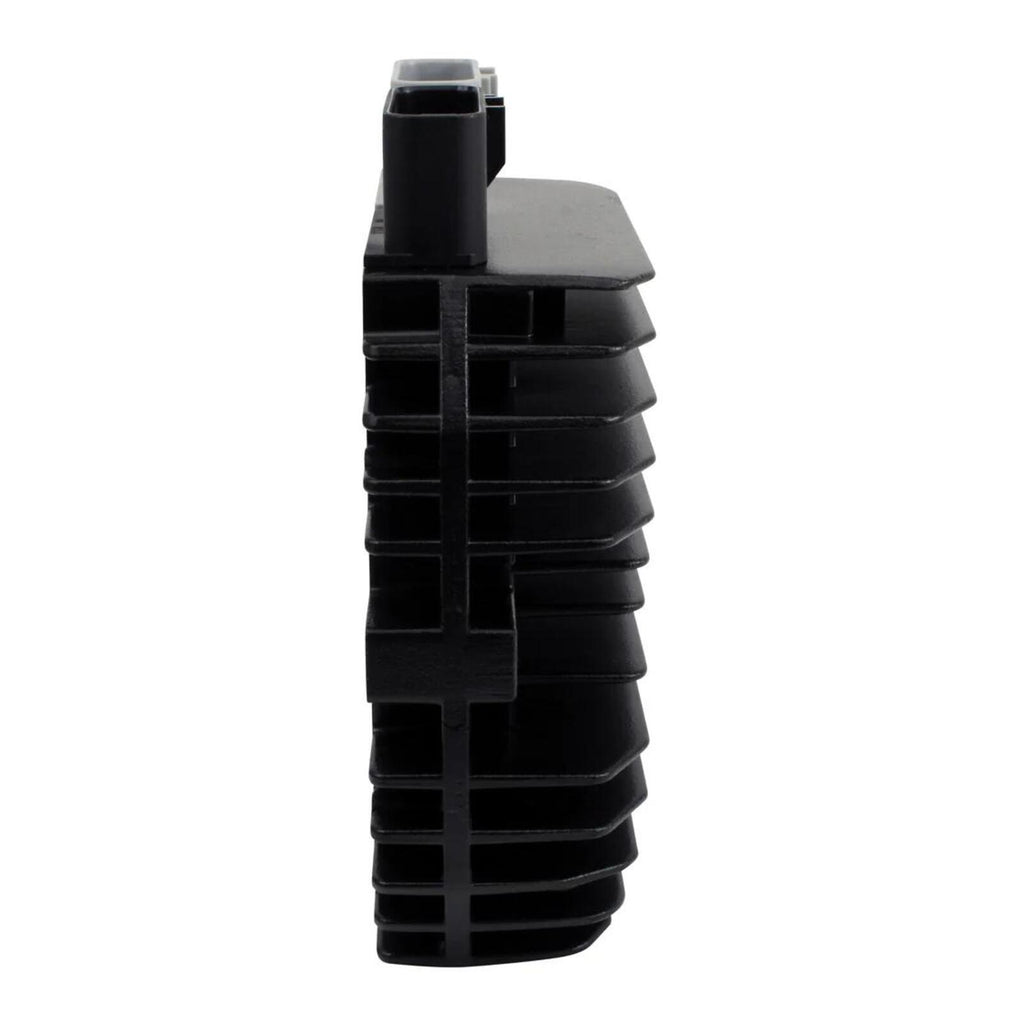

Upgrade your motorcycle's charging system with this high-performance MOSFET voltage regulator/rectifier. Designed as a direct replacement for the original unit, MOSFET technology runs significantly cooler than traditional diode-style regulators while providing improved charging efficiency and reliability. Built-in overheat protection helps prevent damage by temporarily shutting down the unit if excessive temperatures are reached, allowing it to cool before resuming operation.
Features:
- Direct replacement for the original regulator/rectifier.
- Plug-and-play design for quick and easy installation.
- Advanced MOSFET technology for cooler, more efficient operation.
- Superior charging performance compared to conventional diode-style regulators.
- Integrated overheat protection to help prevent component damage.
- Improved heat sink design for enhanced heat dissipation.
- Manufactured with premium electrical components.
- Factory tested before shipping.
Dimensions:
- Width: 119 mm
- Length: 133 mm
- Height: 42 mm
- Fixing Hole Centres: 101 mm
Specifications:
- Number of Plugs: 2
- Number of Pins: 5
- Minimum Charging Voltage: 14.5 V ±0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operating Temperature: -20°C to 85°C
