Stator Honda VT600 Shadow / VLX600 '99-'07 (RMS010-102023)

RMSTATORSKU: RMS010102023
filler

Please Note: Pricing & Stock Availability is Online Only.

Please call us on 06 878 3289 (Hastings) or 06 858 8983 (Waipukurau) to confirm in-store pricing & availability.

Title: STATOR HON VT600 SHADOW / VLX600 1999-2007 (RMS010-102023)
Price:
Sale price$355.99

Tax included

Stock:
Sold out

Description

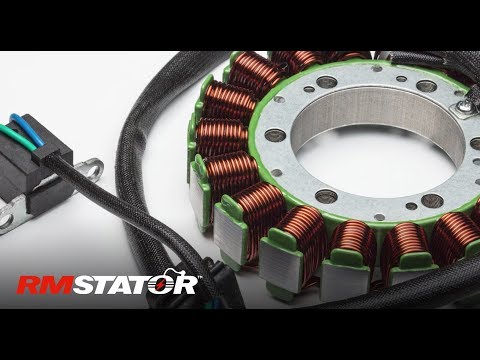

Brand new aftermarket stator.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.

Before Installing the New Stator

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 53 mm
  • Exterior diameter: 115 mm
  • Thickness: 32 mm
  • Length of wires stator to grommet: 229 mm
  • Length of wires grommet to plug: 432 mm

Other Specifications:

  • Number of wires: 3
  • Number of pins: 3
  • Wire to wire resistance :
  • Alternator: Yellow Between each Yellow = 0.4 ohms ±20%
