Stator - Kawasaki KLX250 S/SF ('09-'14) (RMS010-101405)

RMSTATORSKU: RMS010101405
filler

Please Note: Pricing & Stock Availability is Online Only.

Please call us on 06 878 3289 (Hastings) or 06 858 8983 (Waipukurau) to confirm in-store pricing & availability.

Price:
Sale price$392.99

Tax included

Stock:
Only 1 unit left

Description

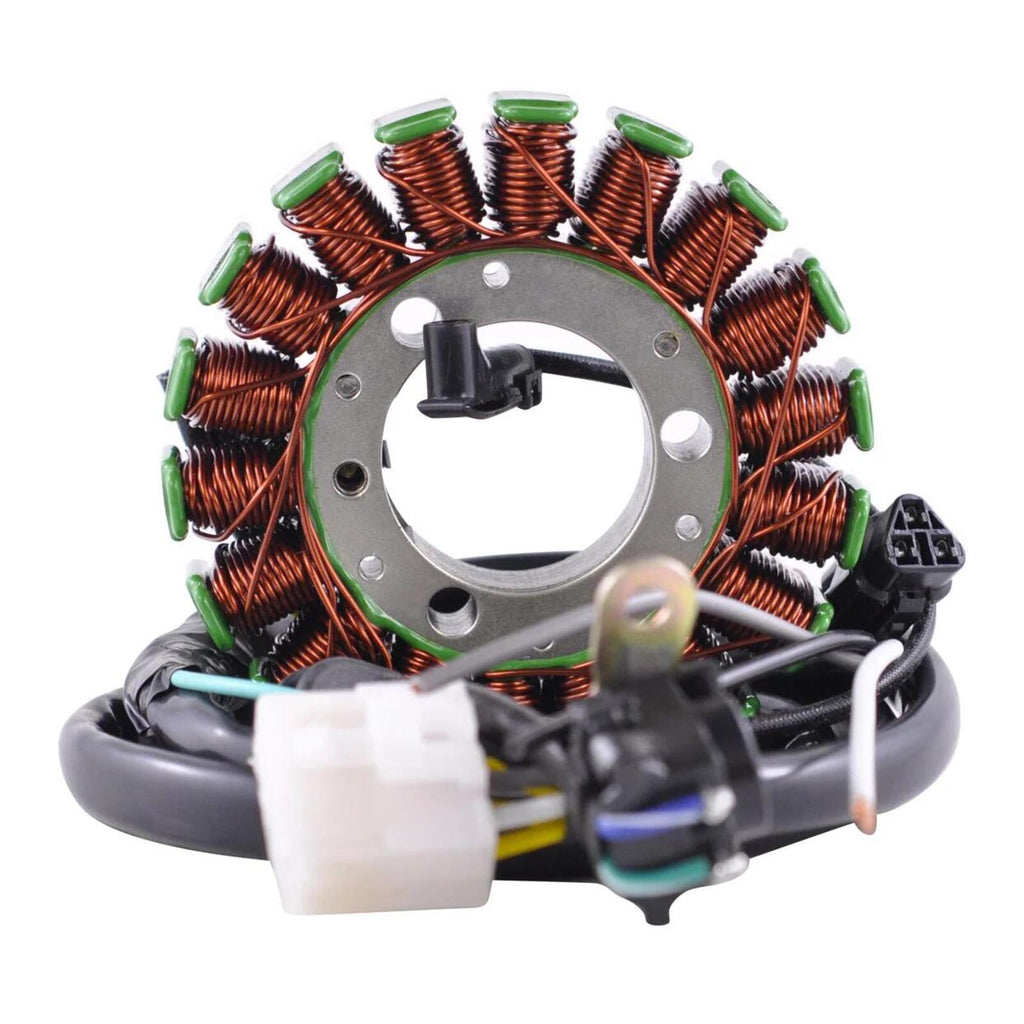

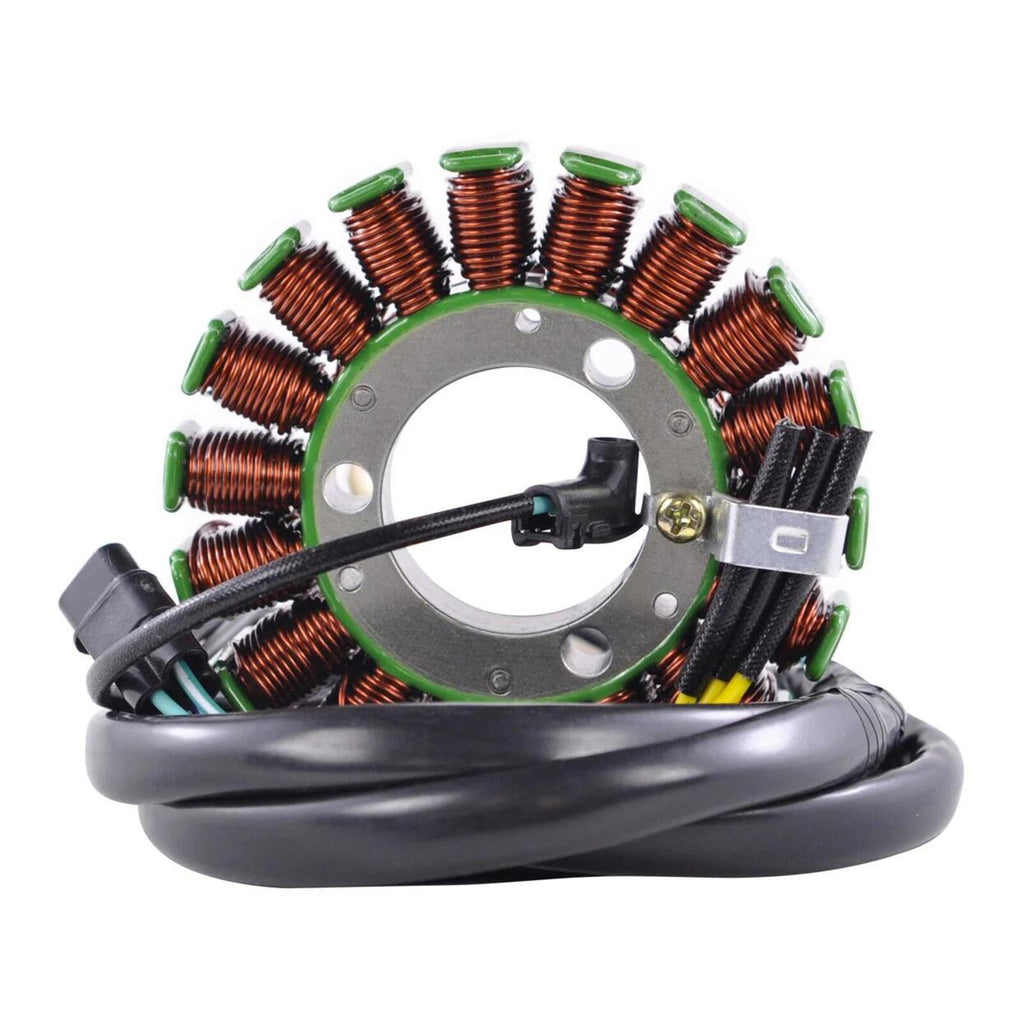

Brand new aftermarket stator.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

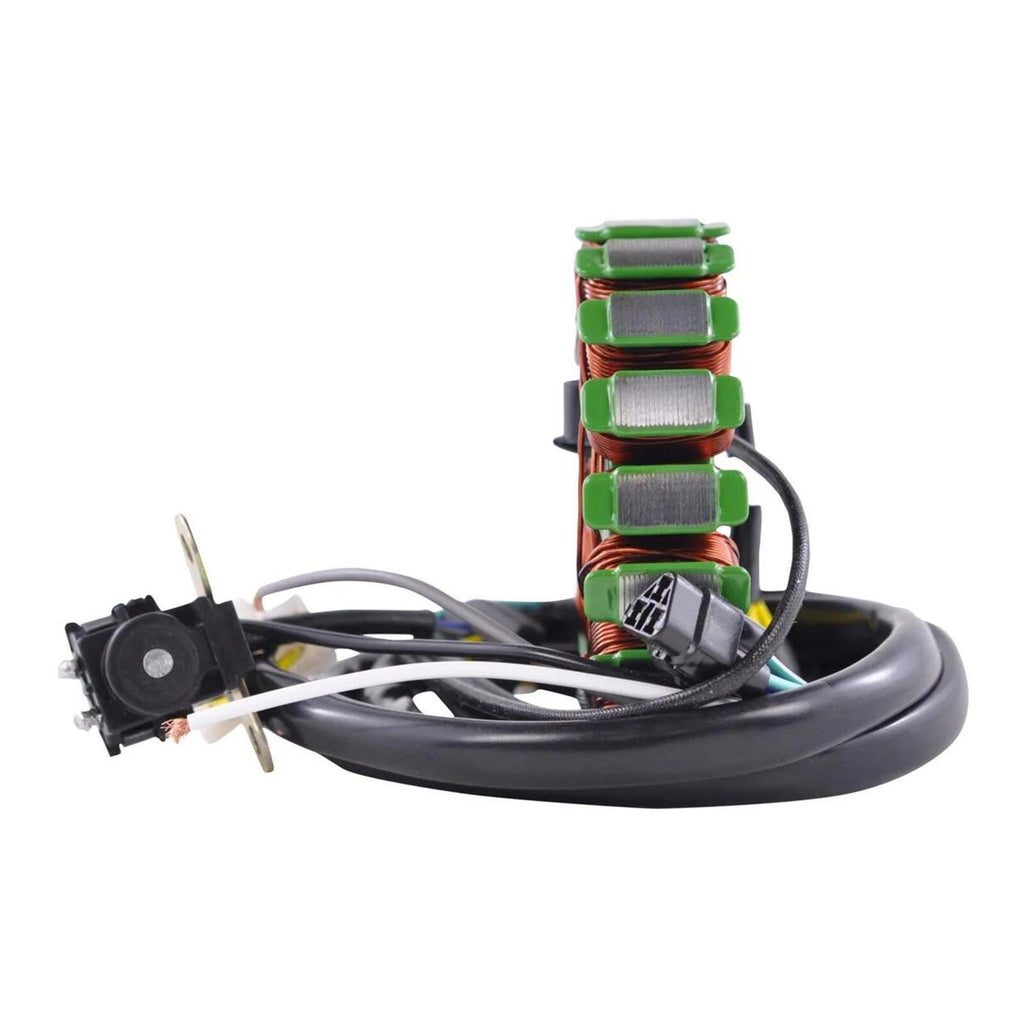

  • Pick up pulsar coil included

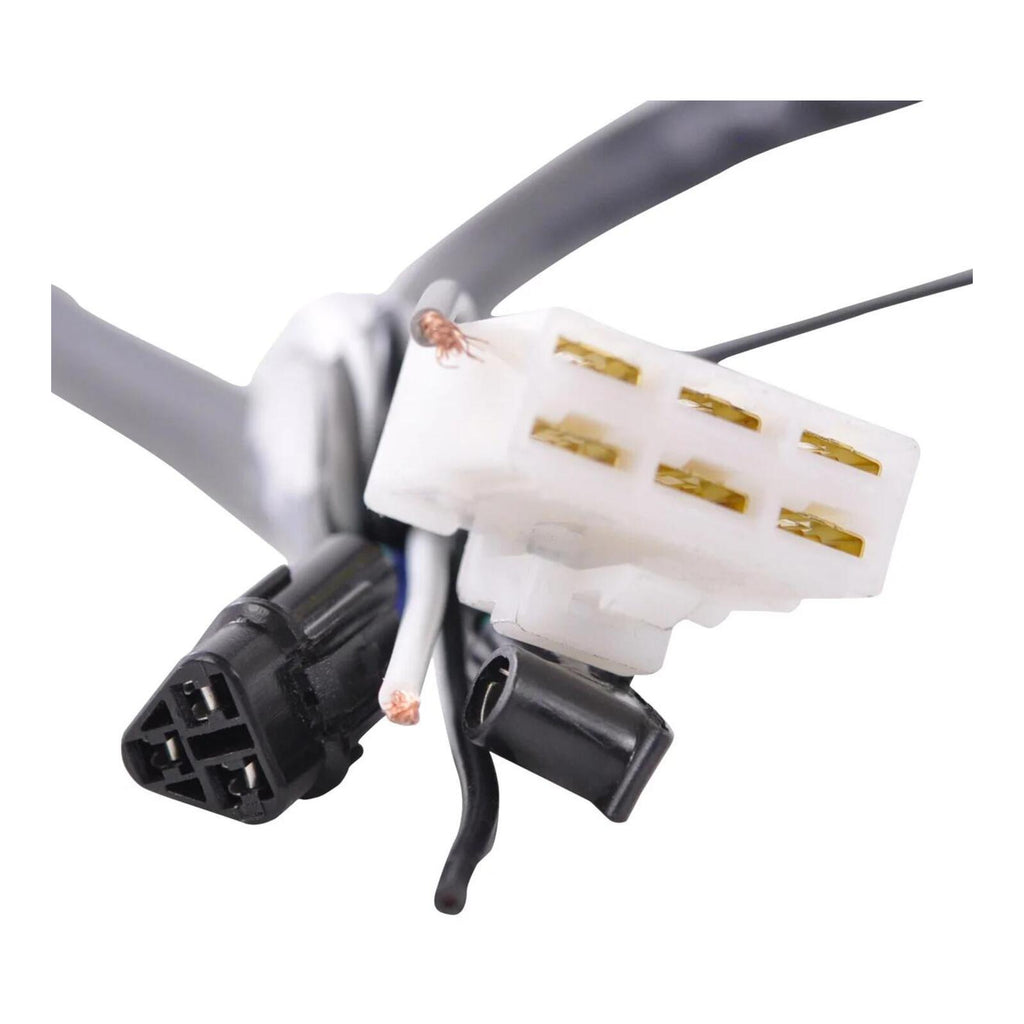

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.

Before Installing the New Stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010''.

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter : 35 mm
  • Exterior diameter : 93 mm
  • Thickness : 18 mm
  • Length of wires stator to grommet 1 : 155 mm
  • Length of wires grommet to plug 1: 505 mm
  • Length of wires grommet to plug 2: 810 mm
  • Length of wires grommet to pick-up coil's plug : 72mm
  • Length of pickup coil's wire to grommet : 60 mm

Other Specifications:

  • Number of wires : 13
  • Number of plugs : 4
  • Number of pins : 13
  • Wire to wire resistance :
  • Alternator : Yellow to Yellow = 0.9 ohms ±20%
  • Pickup : Blue/White to Green/White = 244 ohms ±20%
